New features and functions
SediMAX2 is a significant upgrade of sediMAX with major software and hardware developments. Numerous new features improve user experience and reliability.
- Up to 120 measurements/hour throughput.
- For better and better images.
- Which supports evalution of images captured with the same camera as well.
- Does not require yearly maintenance.
- Quieter operation and more precise movements.
- The evalution module now recognises cocci and rod bacteria separately.
- The instrument performs sample identification, mixing, aspiration into the cuvette and centrifugration. After the cuvette arrives at the microscope the user has the option to move the cuvette via on-screen buttons and take images of any area of the cuvette, changing focusing height. During the process the user has a live view of the cuvette. Images taken are then evaluated by the new evalution module.
Automated speed, indepth precision
|
Sedimax can be connected to A. Menarini Diagnostics strip readers to form a fully automated system combining urine sediment and urine chemistry analysis.
|

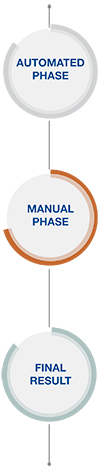

Automatic meets manual for faster and better analysis
SediMAX2 joins rapidity and ease of use in the automatic execution of the entire testing process. This includes video imaging of full-field images of selected specimens, the useful manual investigation option, turning into an efficient microscope for more indepth analysis of the most interesting specimens.
|
|
|
Sedimax2 identifies the sample, shakes it, dispenses it into the cuvette, performs centrifugation and takes the cuvette to the micosope
|
|
|
|
|
At this stage, the user can select the manual micoscopy option which allows:
- live view of the same on screen
- moving the cuvette at will by means of pratical on-screen buttons
- changing the focusiong height
|
|
|
|
|
The user selects the image, and the new evaluation module of sediMAX2 will process it and generate the result.
|
|
This is why two work better than one!
Technical Specifications
Sample Preparation
|
Automatic, on-board
|
Sample volume
|
2ml
|
Analysis volume
|
0.2ml (200ul)
|
Throughput
|
Up to 120 samples/hr
|
Load capacity
|
100 sample tubes (10 samples x 10 racks)
|
Sample tube spec
|
Ht 100 – 105 mm, Diam 16 – 17.5 mm
|
Barcode reade
|
On-board
|
SediMAX cuvette pack
|
50 cuvettes in 12 towers (600 cuvettes in total)
|
Cuvette carousel capacity
|
600 cuvettes (50 x 12 towers)
|
Centrifuge
|
On-board. 2000 rpm for 10 secs per sample
|
Final result
|
Particle concentration (HPF or /ul) & identified category
|
Detected particles
|
RBC, WBC, Hyaline casts, Pathological casts, Epithelial cells, Small round cells, Bacteria, Yeasts, Crystals: Calcium oxalate monohydrate, Calcium oxalate dihydrate, Uric acid, Tri-phosphate, Mucus, Sperm
|
Result archive
|
10.000 sample results and images
|
Wash solution
|
Distilled water (5L bottle), hypochlorite/ bleach solution
|
Waste bin capacity
|
500 cuvettes
|
